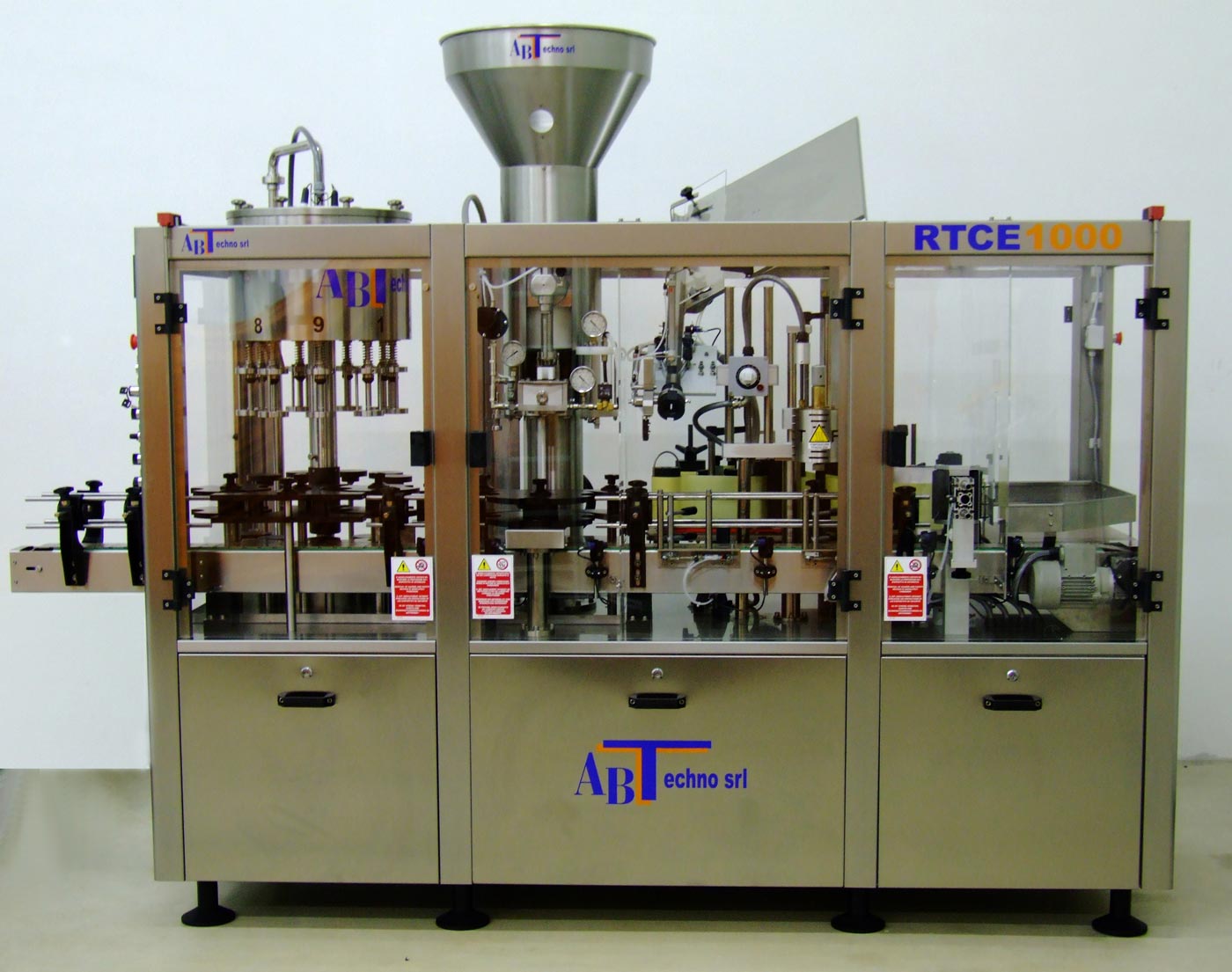

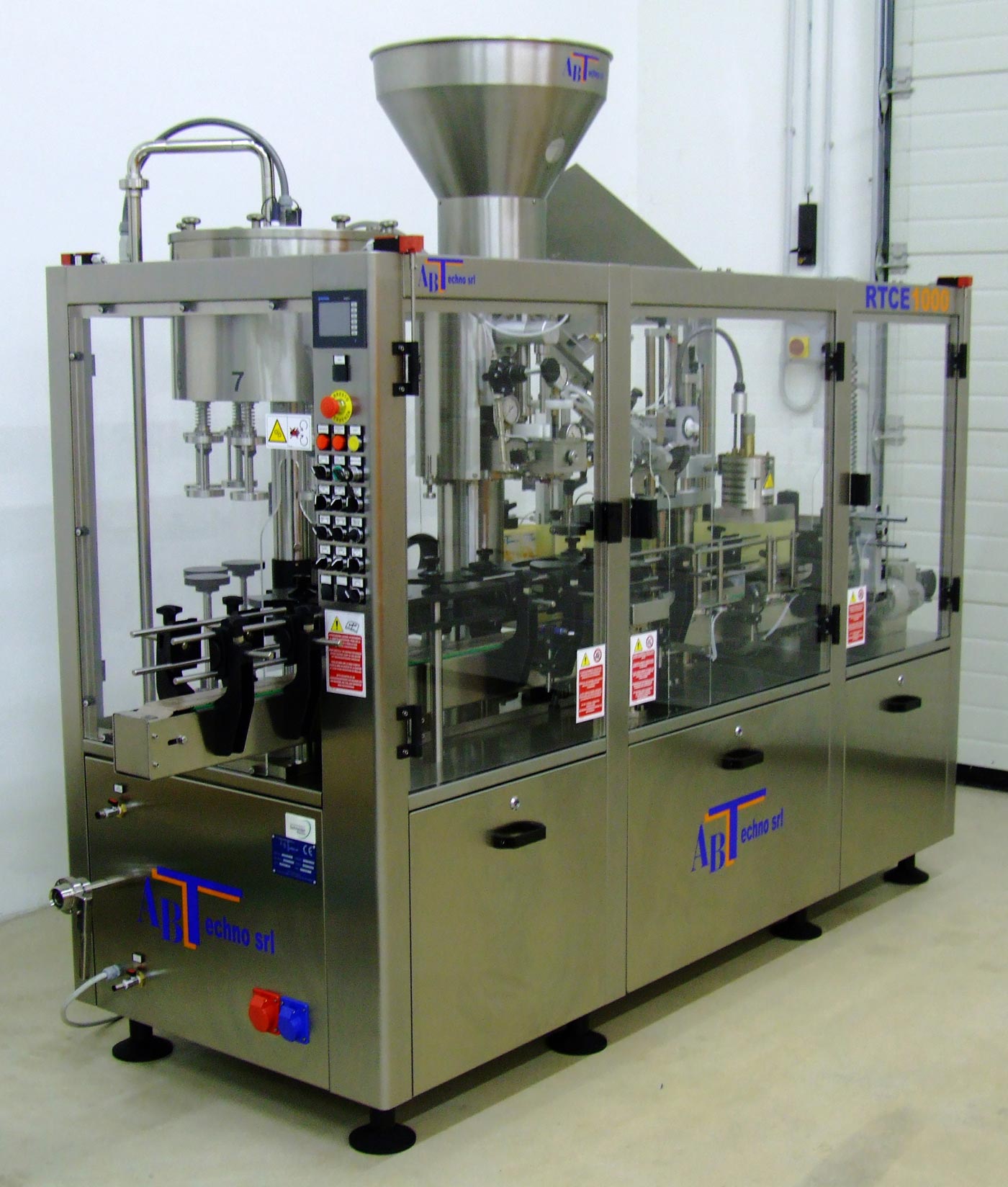

Standard productivity is up to 1500 bottles per hour. One operator required, depending on configuration. The automatically filled bottles are transferred onto the conveyor belt where they are automatically guided, stopping under each activated function, to the storage at the end of the line. All functions are independent.

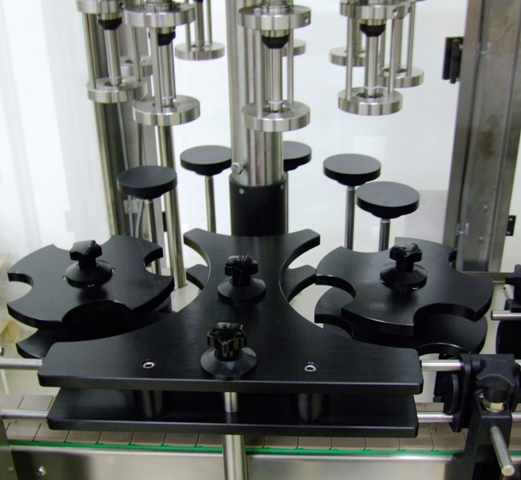

Automatic rotary high vacuum filler built with AISI-304 stainless steel. Includes: nine filler nozzles with mechanical filling level adjustment and nine plates mounted on pneumatic pistons, two star wheels and counter star wheel suitable for cylindrical or square type bottles. Product loading system by pneumatic actuator throttle valve and electronic probes for automatic filling level control in the filler tank, complete with product input gate valve dn25, all in AISI-304 stainless steel.

Automatic single-head corker turret built with AISI-304 stainless steel. Includes: automatic loading star wheel suitable for cylindrical or square type bottles, rapid extraction cork compression group, hopper and cork loader. Suitable for natural or silicone cork stoppers and bottles dia.55mm up to 110mm - h.150/350mm.

Predisposed structural column ready for mounting a capsuler group, either for heat-shrink capsules or aluminum poly-laminated capsules.

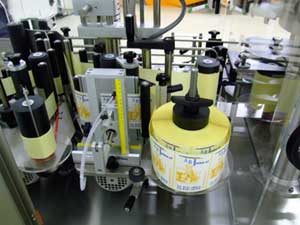

One or two in-line automatic labeling stations, for application of self-adhesive labels on cylindrical and square bottles. Also suitable for applying front and back labels from a single roll and complete with pneumatic bottle lock unit.

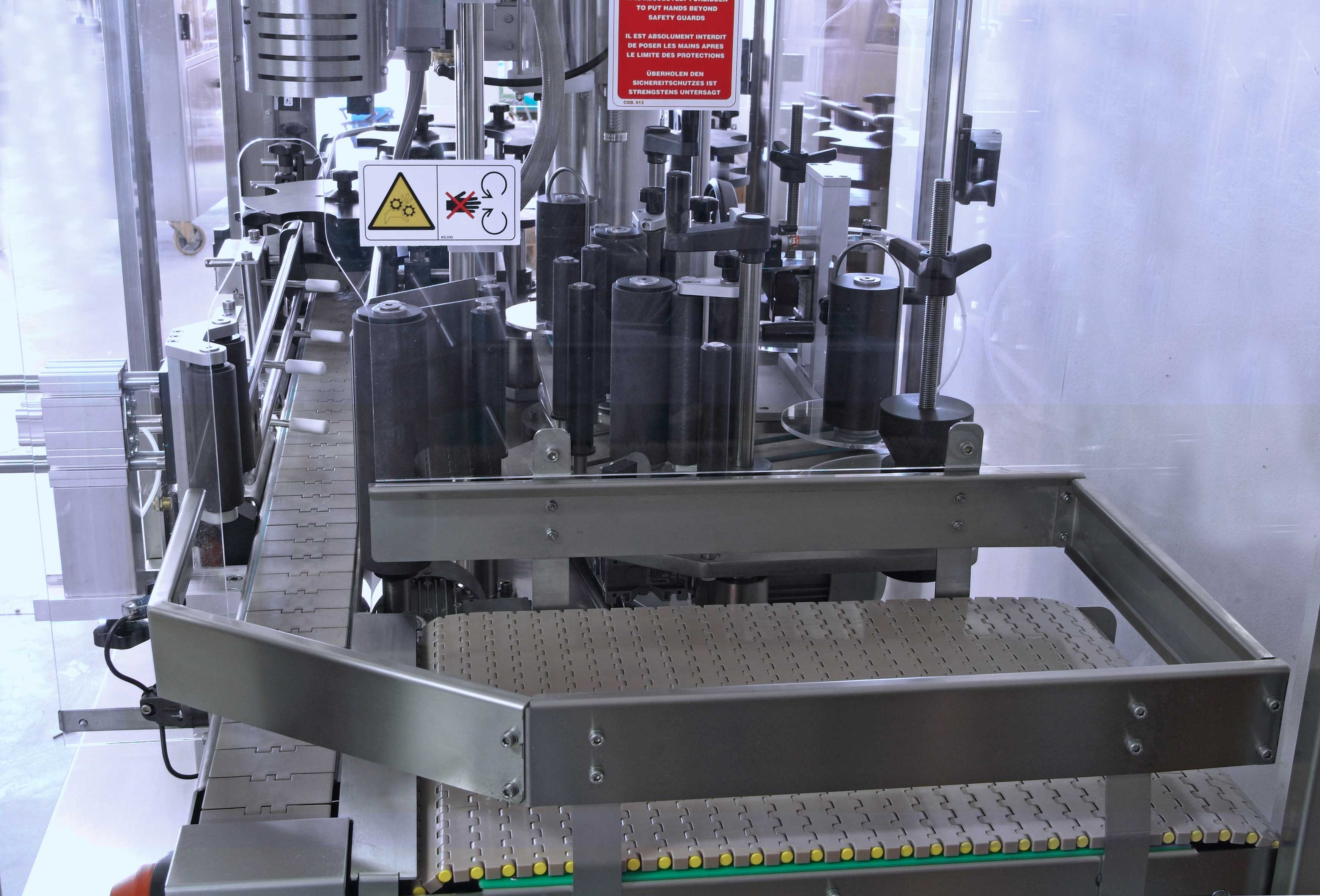

Automatic conveyor belt systems built in AISI-304 stainless steel, with belt in high mechanical resistance plastics, and static or dynamic finished bottles end storage.

Standard productivity is up to 1500 bottles per hour. One operator required, depending on configuration. The automatically filled bottles are transferred automatically onto the conveyor belt where they are automatically guided, stopping under each activated function, to the storage at the end of the line. All functions are independent.

Automatic rotary high vacuum filler built with AISI-304 stainless steel. Includes: nine filler nozzles with mechanical filling level adjustment and nine plates mounted on pneumatic pistons, two star wheels and counter star wheel suitable for cylindrical or square type bottles. Product loading system by pneumatic actuator throttle valve and electronic probes for automatic filling level control in the filler tank, complete with product input gate valve dn25, all in AISI-304 stainless steel.

Automatic single-head screw capper turret built with AISI-304 stainless steel. Includes: automatic loading star wheel suitable for cylindrical or square type bottles, automatic electro-magnetic vibration caps feeder, chute with direct positioning device and capping head.

Predisposed structural column ready for mounting a capsuler group, either for heat-shrink plastic capsules or aluminum poly-laminated capsules.

One or two in-line automatic labeling stations, for application of self-adhesive labels on cylindrical and square bottles. Also suitable for applying front and back labels from a single roll and complete with pneumatic bottle lock unit.

Automatic conveyor belt systems built in AISI-304 stainless steel, with belt in high mechanical resistance plastics, and static or dynamic finished bottles end storage.

Automatic rotary high vacuum filler built with AISI-304 stainless steel. Includes: nine filler nozzles with mechanical filling level adjustment and nine pneumatic pistons, mounting centering plates suitable for cylindrical or square type bottles. Product loading system by pneumatic actuator throttle valve and electronic probes for automatic filling level control in the filler tank, complete with product input gate valve dn25, all in AISI-304 stainless steel.

Automatic single-head corker turret built with AISI-304 stainless steel. Includes: shared automatic loading star wheel suitable for Bordeaux bottles, rapid extraction cork compression group, hopper and cork loader. Suitable for natural or silicone cork stoppers and bottles dia.55mm up to 110mm - h.150/350mm.

Automatic single-head screw capper turret built with AISI-304 stainless steel. Includes: shared automatic loading star wheel suitable for cylindrical bottles, automatic electro-magnetic vibration caps feeder, chute with direct positioning device and capping head.

Predisposed structural column ready for mounting a capsuler group, either for heat-shrink plastic capsules or aluminum poly-laminated capsules.

One or two in-line automatic labeling stations, for application of self-adhesive labels on round and conical bottles. Also suitable for applying front and back labels from a single roll and complete with pneumatic bottle lock unit.

Automatic conveyor belt systems built in AISI-304 stainless steel, with belt in high mechanical resistance plastics, and static or dynamic finished bottles end storage.

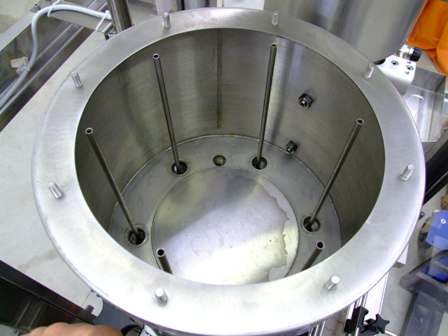

Optional rotary high vacuum filler tank, complete with 9 standard nozzles and rotary base coupling system.

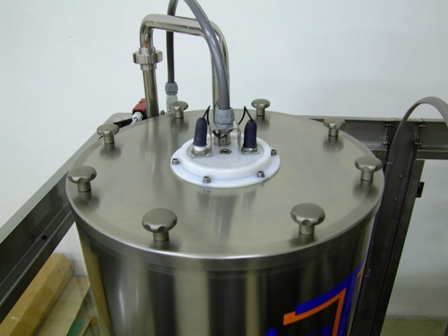

Nitrogen (or other suitable gas) injection system in filler tank, to avoid any contact between air and product. Complete with gas pressure control valve and air exhaust valve.

Nitrogen (or other suitable gas) injection applied  before the bottle is presented under the filling turret. The adjustable device includes a fixed nozzle for nitrogen injection, a gas pressure control valve and a gas pressure control gauge.

Kit includes one star wheel and one counter star wheel, in high mechanical-resistance plastics, to load/unload the capping turret with bottles of a different format from the one provided in the basic configuration monoblock (1 kit for each bottle format required).

Kit includes one star wheel and one counter star wheel, in high mechanical-resistance plastics, to load/unload the capping turret with bottles of a different format from the one provided in the basic configuration monoblock (1 kit for each bottle format required).

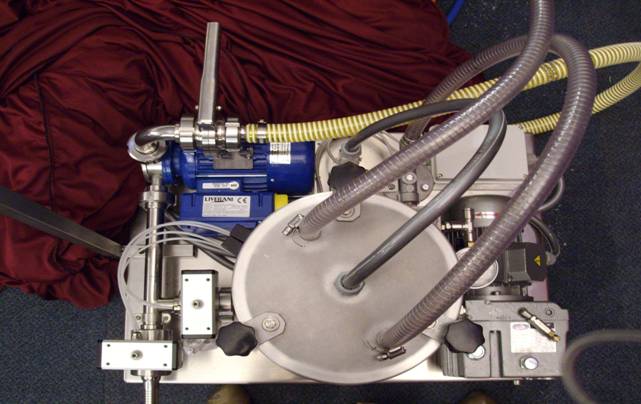

Air pressure accumulator to create a vacuum in the product-full bottle, immediately before cork insertion. The single centering device includes a close circuit depression system complete with pre-chamber and 12,0mc/h pump with motor CE certified.

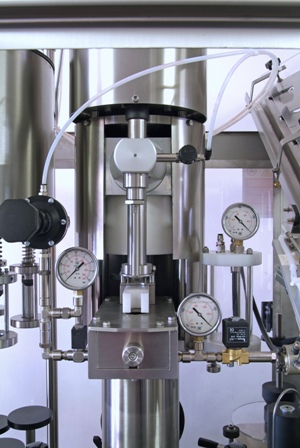

Nitrogen injection applied to the product-full bottle, immediately before cork insertion. The single centering device includes a nitrogen injection system on the automatic corker, a gas pressure control valve and a gas pressure control gauge.

Nitrogen (or other suitable gas) injection applied to the product-full bottle, before the bottle is presented under the turret for cap insertion. The adjustable device includes a fixed nozzle for nitrogen injection, a gas pressure control valve and a gas pressure control gauge. Suitable for any single head capping format (excluding cork) and any double head capping format (including cork).

Kit includes pneumatic device to blow air into the corker compression jaws group, to eliminate residual powder remains from the corks.

Photocell bridge to detect if there is a cork in the bottle, located before the capsule loader. It automatically signals an emergency should a bottle not be corked and prevents the CAPSULE LOADING as well as the LABELS APPLICATION.

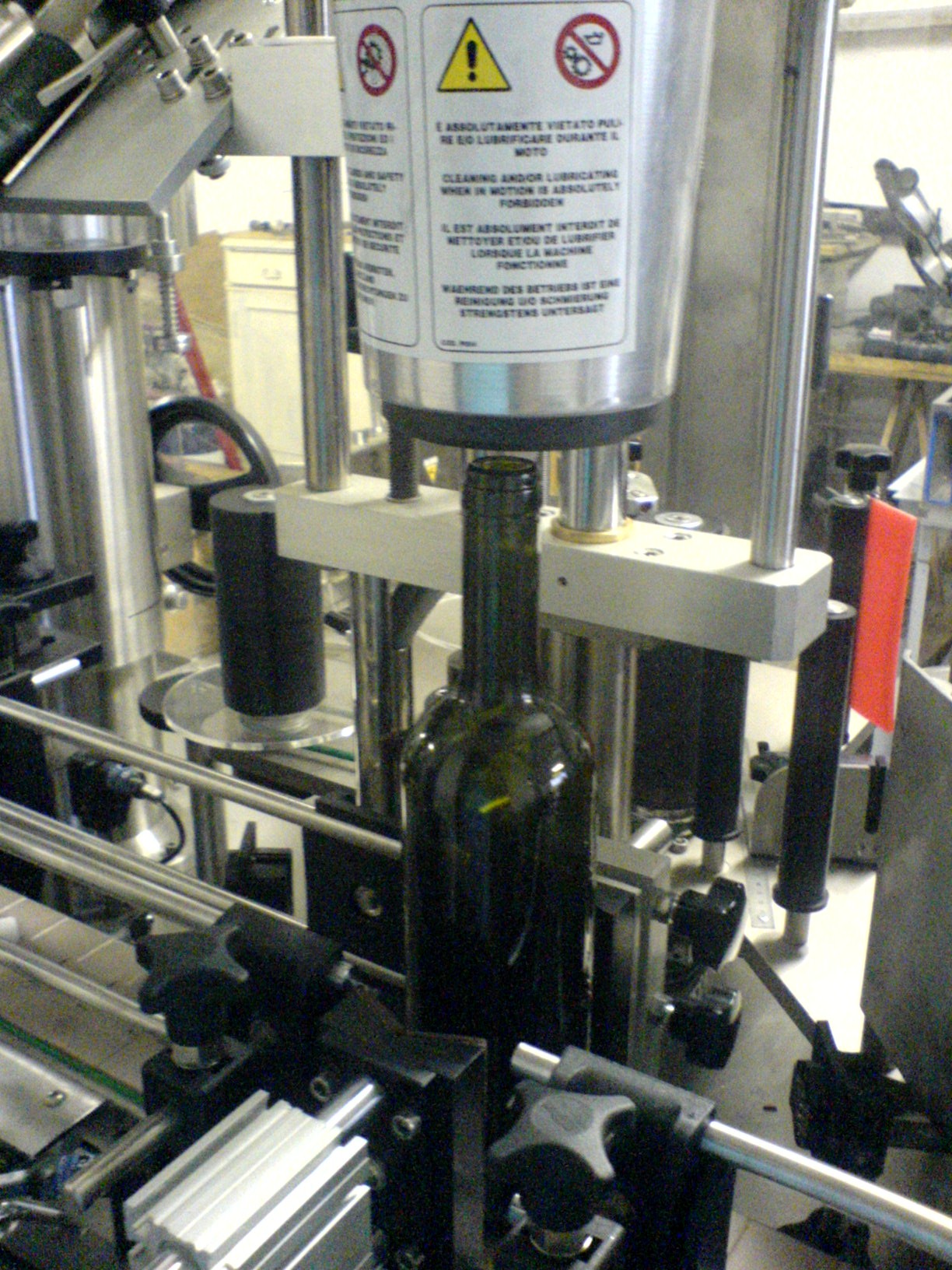

Ascent-descent automatic motor system, with independent ascent-descent speed adjustment. Thermal head driven by independent motor with adjustable rolling speed, suitable for aluminum poly-laminated capsules. Capsule loader with air-blowing loading system, complete with rotating pneumatic automatic capsule loader head and capsule chute with photocell signaling when no capsules are left in the chute.
