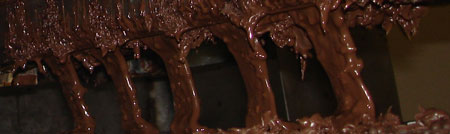

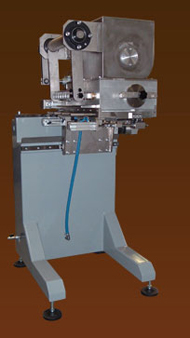

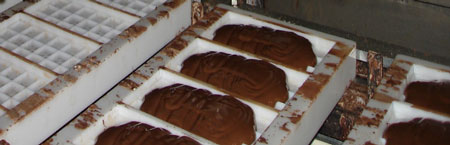

This Depositor is especially designed to deposit the chocolate mixed with solid ingredients such as: hazelnuts, crispies, almonds, cereals, dried fruits, raisin etc., but it can also deposit plain chocolate. Our Ribbon depositor is an In-line heavy duty depositor designed for small, medium and high capacity production lines. It can be supplied as a single machine to be installed in an existing line or with a fully automated line. It’s very versatile and can deposit any kind of bars or tablets. The main frame is cantilevered with a stainless steel double jacket heated hopper for the chocolate, complete with an internal stirrer whose especial intent is to mix in an uniform way the solid ingredients with the chocolate. PLC-controlled for an accurate temperature setting, distribution and deposit weight. The depositing process is performed by pistons with food grade gaskets for the maximum depositing accuracy and with plates with special interchangeable knives according to the used moulds. Both the pistons and the depositing valves are easily removable for cleaning process. The depositor is designed for a quick change over and easily cleaning. It can be equipped with a separate solid ingredients depositor to feed the depositor hopper with the inclusions that will be mixed with the chocolate.

The Depositor can work as a stand alone machine or in a new or existing line. Suitable for small, medium and large productions.

Main Characteristics

• Servomotor for the ribbon depositing process;

• Servomotor for the pistons depositing;

• Pistons with a diameter of 36mm with food grade gaskets for the maximum depositing accuracy;

• Stainless steel double jacket heated hopper, with internal stirrer;

• Each piston can be individually disconnected;

• Electronic weight regulation ;

• Pistons and valves easily removable for cleaning;

• Tails cutting device at the end of the depositing;

• Independent heating system;

• Dedicated Software;

• Touch screen operator panel;

• Dedicated PLC control;

• Selection of the operation language;

• Accurate setting and checking of the temperatures;

• Unlimited recipes setting;

•Tele-service via dedicated modem.
